유압 파일함마 사양

Request a Quote

유압
파일함마

BRUCE 유압파일 해머

BRUCE 유압 파일 해머 Bruce는 23년 이상의 업력을 보유한 유압 파일 장비, 유압 바이브로 함마 제조 기술 기업으로 "맞춤형 해머" "효율적인 설계" "경쟁력있는 가격"을 100개국 이상에 수출 제공하고 있습니다.

세계가 인정하는 브루스 파일 해머는 혹독한 건설현장에서 강력한 생존성을 보장하고 다양한 건설 현장에서 고객의 자원 효율과 강력한 시스템 운용성을 보장합니다.

프로젝트 환경과 고객사의 요청에 따라 다양한 말뚝 구동 애플리케이션, 높은 에너지 효율, 전기 및 유압 항타 시스템의 신뢰성, 다양한 항타기 장착 및 맞춤형 제품을 설계, 제공합니다.

유압 파일함마

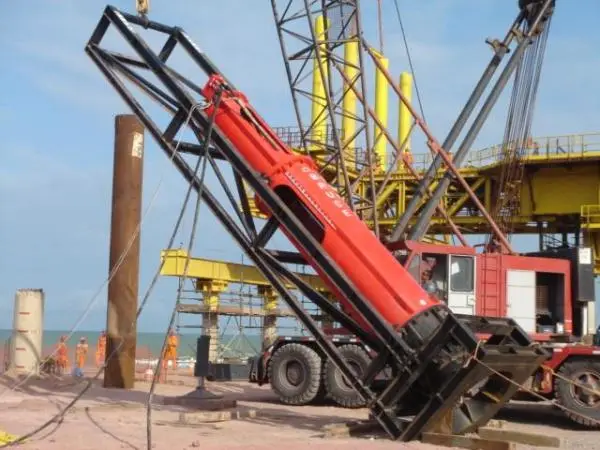

Hydraulic Impact Pile Hammer - BRUCE Piling Hammer

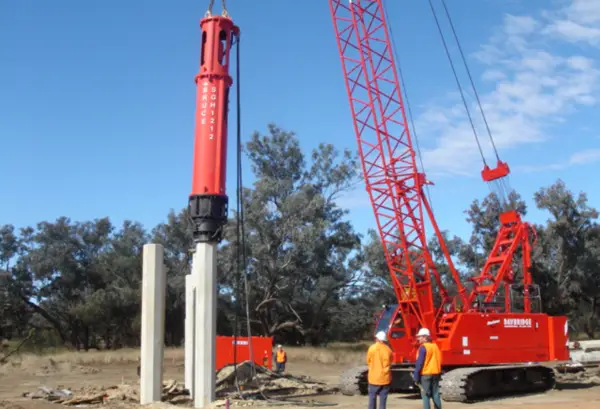

BRUCE SGH-1212 Pile Hammer (Max. Potential Energy : 14.4 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
14.4 ton.m 38 ~ 60 250 bar 320 lpm 21,000 kg PQ-250
104,153 lbs.ft / 141 kNm 38 ~ 60 3,627 psi 85 gpm 46,297 lbs PQ-250
Hydraulic Pile Hammer-BRUCE SGH-1215

BRUCE SGH-1215 Piling Hammer (Max. Potential Energy : 18 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
18 ton.m 38 ~ 60 250 bar 370 lpm 21,500 kg PQ-300
130,194 lbs.ft / 177 kNm 38 ~ 60 3,627 psi 98 gpm 47,399 lbs PQ-300
Pile Hammer for Casing Pile Driving on Gas Stroage

BRUCE SGH-1312 Pile Hammer (Max. Potential Energy : 15.6 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
15.6 ton.m 35 ~ 60 250 bar 320 lpm 22,000 kg PQ-250
112,835 lbs.ft / 153 kNm 35 ~ 60 3,627 psi 85 gpm 48,502 lbs PQ-250

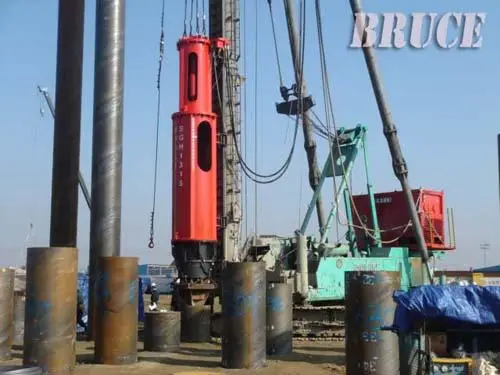

Pile Hammer for Casing Pile Driving

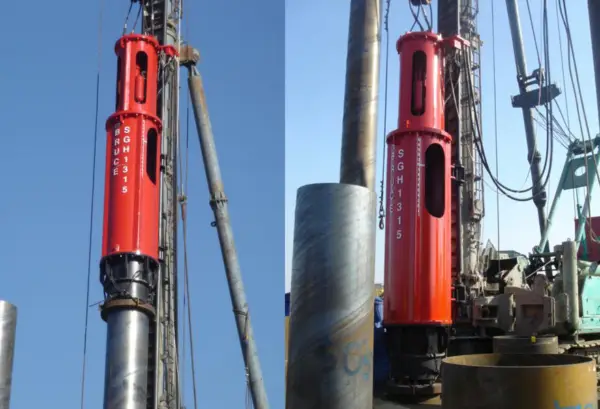

BRUCE SGH-1315 Piling Hammer (Max. Potential Energy : 19.5 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
19.5 ton.m 35 ~ 60 250 bar 370 lpm 22,500 kg PQ-300
141,045 lbs.ft / 191 kNm 35 ~ 60 3,627 psi 98 gpm 49,640 lbs PQ-300

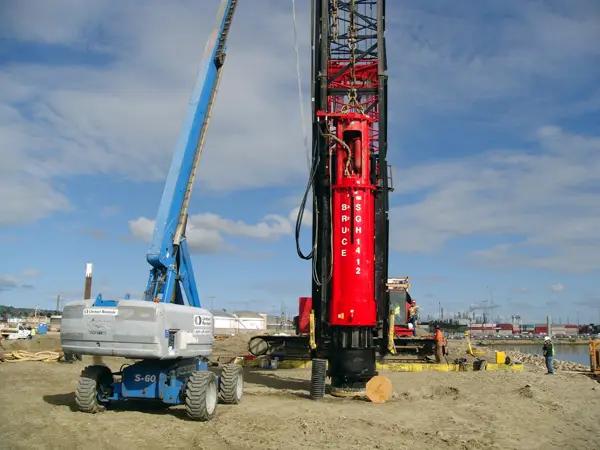

Piling Hammer - BRUCE Pile Hammer

BRUCE SGH-1412 Pile Hammer (Max. Potential Energy : 16.8 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
16.8 ton.m 36 ~ 60 250 bar 320 lpm 23,500 kg PQ-250
121,511 lbs.ft / 165 kNm 36 ~ 60 3,627 psi 85 gpm 51,809 lbs PQ-250

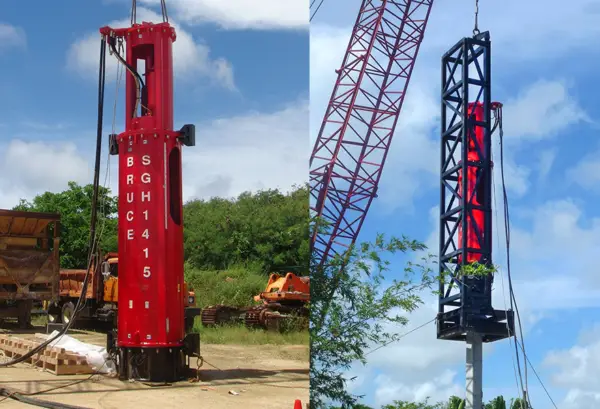

Pile Hammer - BRUCE SGH-1415 Concrete Pile Driving

BRUCE SGH-1415 Piling Hammer (Max. Potential Energy : 21 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
21 ton.m 35 ~ 60 250 bar 370 lpm 24,000 kg PQ-300
151,893 lbs.ft / 206 kNm 35 ~ 60 3,627 psi 98 gpm 52,911 lbs PQ-300
Hydraulic Impact Pile Hammer - BRUCE SGH-1615 Pile Hammer

BRUCE SGH-1612 Pile Hammer (Max. Potential Energy : 19.2 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
19.2 ton.m 32 ~ 60 250 bar 350 lpm 30,500 kg PQ-300
138,979 lbs.ft / 188 kNm 32 ~ 60 3,627 psi 93 gpm 67,241 lbs PQ-300

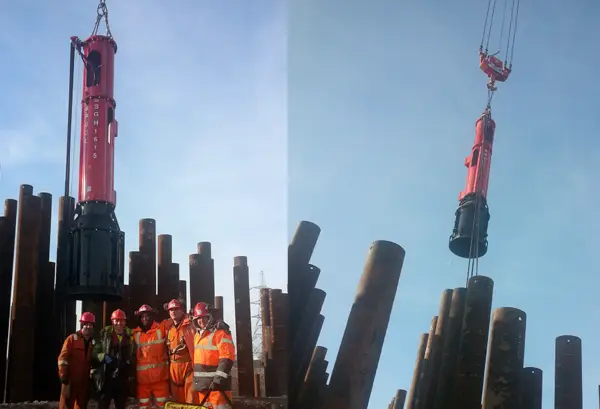

Pile Hammer - BRUCE SGH-1615 Piling Hammer

BRUCE SGH-1615 Piling Hammer (Max. Potential Energy : 24 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
24 ton.m 30 ~ 60 250 bar 410 lpm 31,000 kg PQ-400
173,592 lbs.ft / 236 kNm 30 ~ 60 3,627 psi 108 gpm 68,343 lbs PQ-400

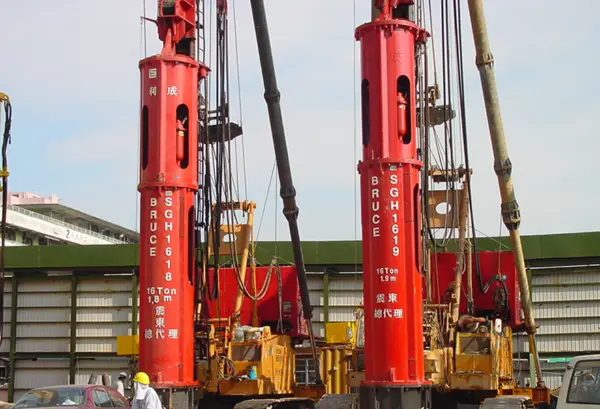

Piling Hammer - BRUCE SGH-1618 Pile Hammer

BRUCE SGH-1618 Impact Hammer (Max. Potential Energy : 28.8 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
28.8 ton.m 28 ~ 60 250 bar 480 lpm 31,500 kg PQ-500
208,116 lbs.ft / 283 kNm 28 ~ 60 3,627 psi 127 gpm 69,446 lbs PQ-500

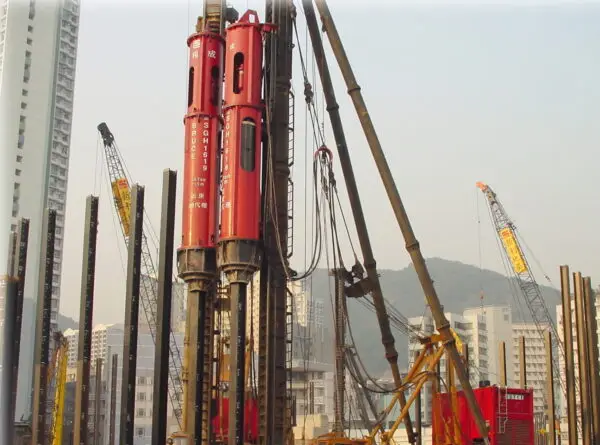

Piling Hammer - BRUCE SGH-1619 Pile Hammer

BRUCE SGH-1619 Piling Hammer (Max. Potential Energy : 30.4 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
30.4 ton.m 26 ~ 60 250 bar 480 lpm 32,000 kg PQ-500
219,883 lbs.ft / 298 kNm 26 ~ 60 3,627 psi 127 gpm 70,548 lbs PQ-500
