바이브로 함마

BRUCE 바이브로 함마 & 제품 소개

우수한 유압 기술로 기초 건설 장비 제작 분야의 세계적 브랜드 파워를 자랑하는 BRUCE 바이브로 해머(바이브로 함마) 해머는 굴삭기 장착용 바이브로 부터 크레인 지지형 바이브로 까지 풀 모델을 제작하고 있습니다.

BRUCE 유압 바이브로함마는 시트, 말뚝 및 H-빔 및 항타에 사용되는 유압 작동식 진동 바이브로해머입니다.

단순하고 안정적이고 다재다능한 디자인으로 매우 효율적이고 손쉬운 조작이 가능합니다. 광범위한 연구의 결과 BRUCE 유압 바이브로함마는 진동을 사용하여 접지 저항을 크게 줄이거나 제거함으로써 파일 드라이버를 업계 최고 수준으로 끌어올렸습니다.

바이브로 함마 소개

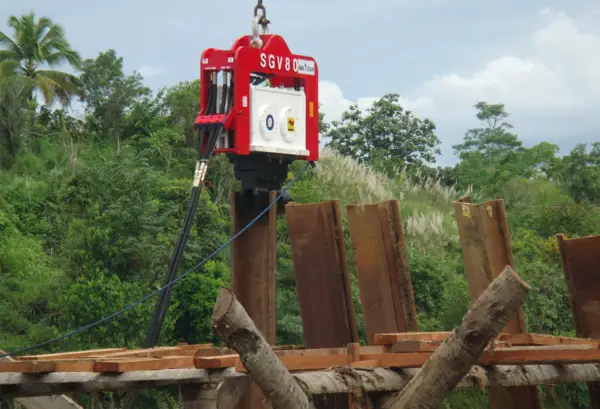

Hydraulic Vibratory Hammer - BRUCE SGV-80

BRUCE SGV-80 Vibro Hammer (eccentric moment 11.5 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
11.5 kg.m 51 tons 2,000 vmp 22 mm 25 tons 91 kW 320 bar 170 lpm
113 Nm 510 kN 2,000 vpm 0.875 inch 250 kN 121 HP 4,641 psi 45 gpm

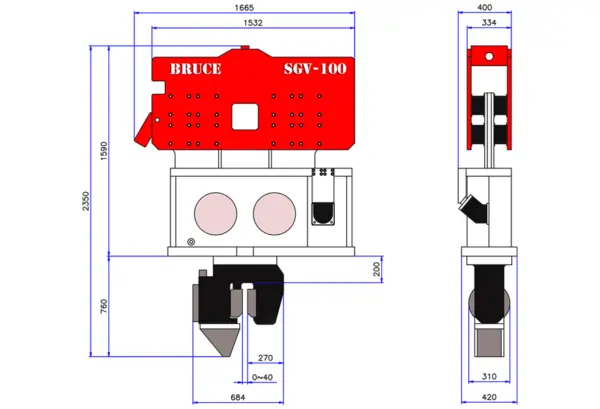

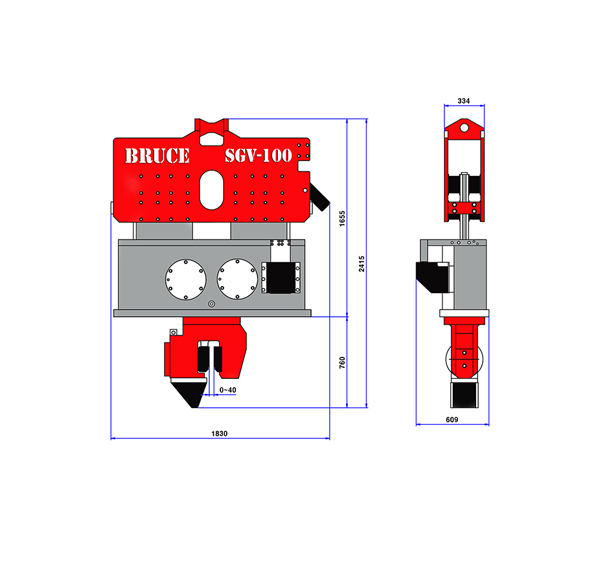

Hydraulic Vibratory Hammer - BRUCE SGV-100

BRUCE SGV-100 Vibro Hammer (eccentric moment 17.3 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
17.3 kg.m 62 tons 1,800 vmp 22 mm 30 tons 144 kW 320 bar 270 lpm
170 Nm 620 kN 1,800 vpm 0.875 inch 300 kN 193 HP 4,641 psi 71 gpm

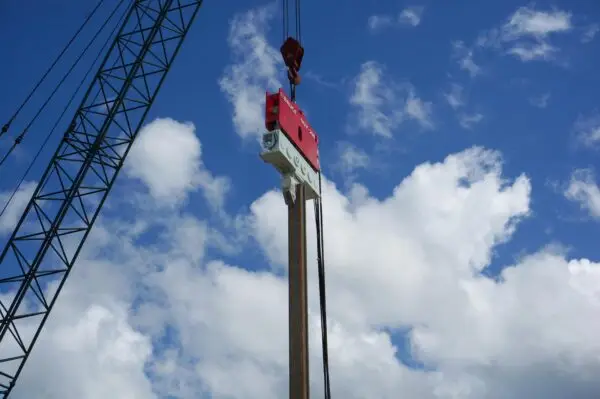

Vibro Hammer - Sheet Pile Hammer

BRUCE SGV-200 Vibro Hammer (eccentric moment 26 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
26 kg.m 84 tons 1,730 vmp 19 mm 40 tons 191 kW 320 bar 360 lpm
255 Nm 840 kN 1,730 vpm 0.75 inch 400 kN 256 HP 4,641 psi 95.1 gpm

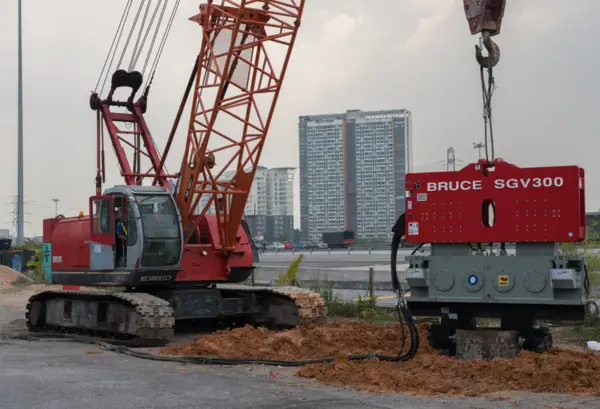

Vibro Hammer - BRUCE SGV-300

BRUCE SGV-300 Vibro Hammer (eccentric moment 34 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
34 kg.m 112 tons 1,730 vmp 19 mm 40 tons 191 kW 320 bar 360 lpm
333 Nm 1,120 kN 1,730 vpm 0.75 inch 400 kN 256 HP 4,641 psi 95.1 gpm

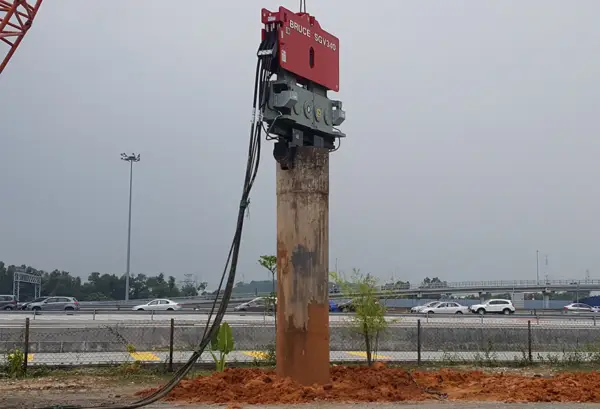

Vibratory Hammer - BRUCE SGV-340

BRUCE SGV-340 Vibratory Hammer (eccentric moment 34 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
34 kg.m 112 tons 1,730 vmp 19 mm 40 tons 191 kW 320 bar 360 lpm
333 Nm 1,120 kN 1,730 vpm 0.75 inch 400 kN 256 HP 4,641 psi 95.1 gpm

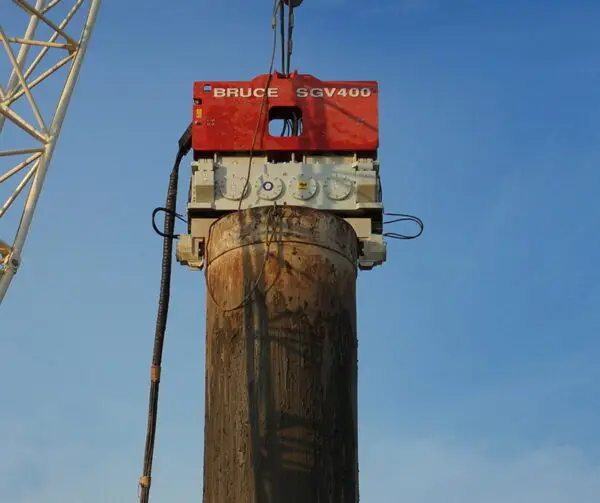

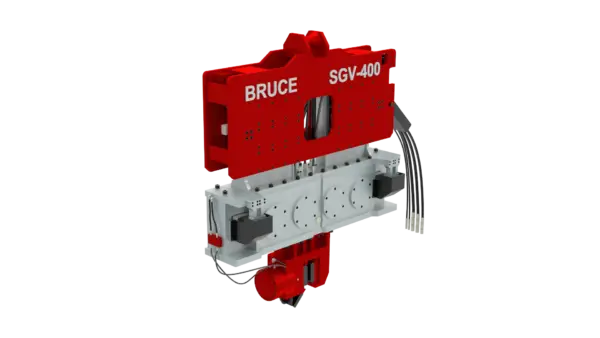

Vibro Hammer - BRUCE SGV-400

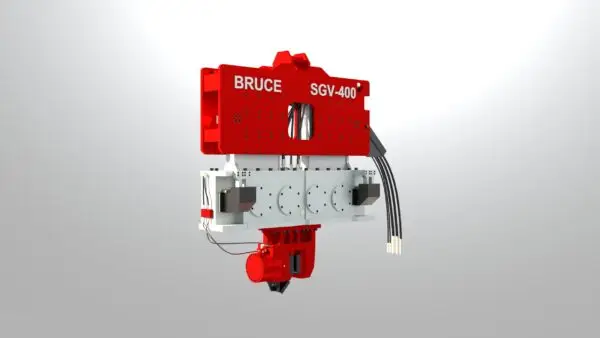

vibro hammer-BRUCE SGV-400-2023-sheet pile clamp

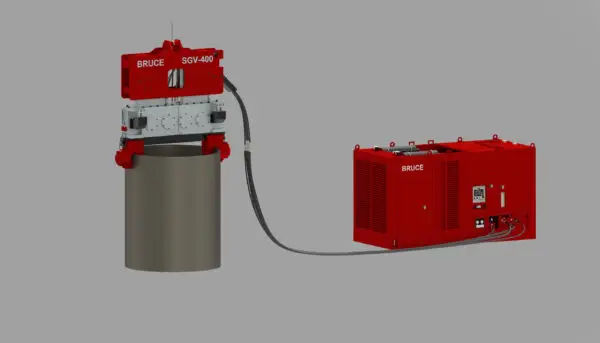

vibro hammer-BRUCE SGV-400-2023-07
vibro hammer-BRUCE SGV-400-single-clamp-002

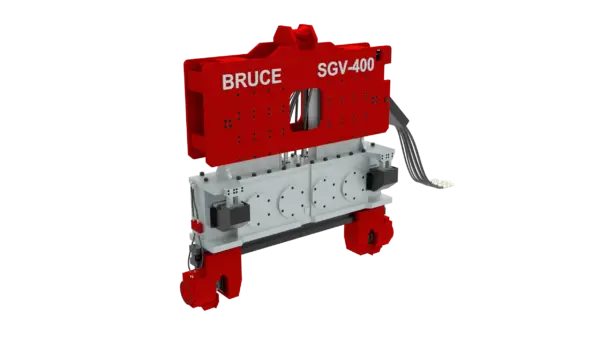

vibro hammer-BRUCE SGV-400-Double-clamp-001

BRUCE SGV-400 Vibro Hammer (eccentric moment 46 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
46 kg.m 148 tons 1,710 vmp 18 mm 60 tons 281 kW 320 bar 560 lpm
451 Nm 1,480 kN 1,710 vpm 0.71 inch 600 kN 377 HP 4,641 psi 148 gpm
vibro-hammer-spec-bruce-SGV-400

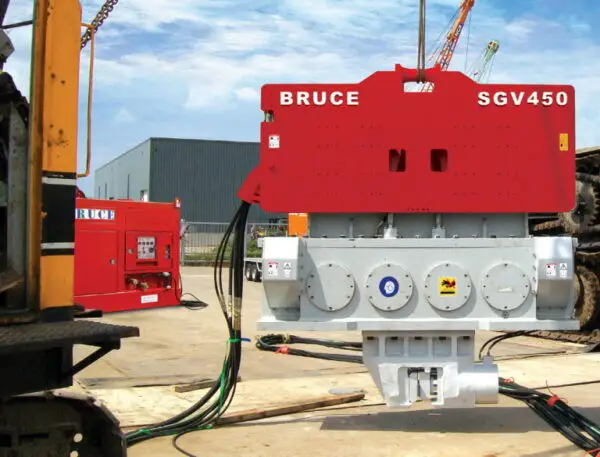

Vibro Hammer - BRUCE Vibratory Hammer

BRUCE SGV-450 Vibratory Hammer (eccentric moment 52 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
52 kg.m 166 tons 1,700 vmp 19 mm 80 tons 318 kW 320 bar 590 lpm
4,513 in-lbs 1,660 kN 1,700 vpm 0.75 inch 800 kN 427 HP 4,641 psi 156 gpm
vibro-hammer-spec-bruce-SGV-400

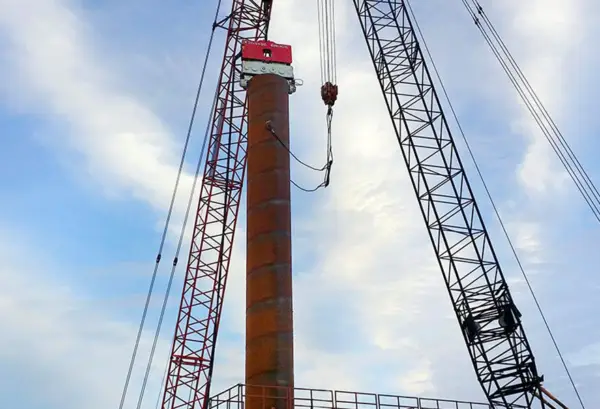

Vibro Hammer - Casing Vibrating Hammer

BRUCE SGV-480HD Vibro Hammer (eccentric moment 52 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
52 kg.m 166 tons 1,700 vmp 19 mm 80 tons 318 kW 320 bar 590 lpm
510 Nm 1,660 kN 1,710 vpm 0.75 inch 800 kN 427 HP 4,641 psi 156 gpm

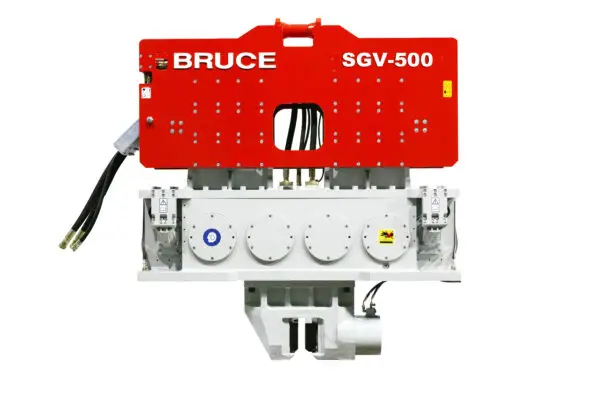

Bruce vibro hammer SGV-500-01 Front

BRUCE SGV-500 Vibratory Hammer (eccentric moment 55 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
55 kg.m 179 tons 1,700 vmp 20 mm 80 tons 318 kW 320 bar 590 lpm
539 kN 1,752 kN 1,710 vpm 0.79 inch 800 kN 427 HP 4,641 psi 156 gpm
vibro-hammer-spec-bruce-SGV-500

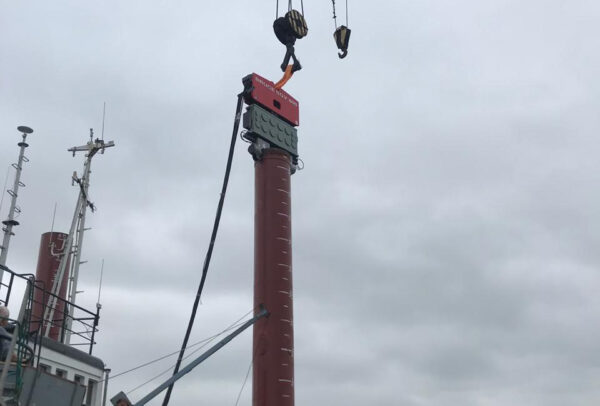

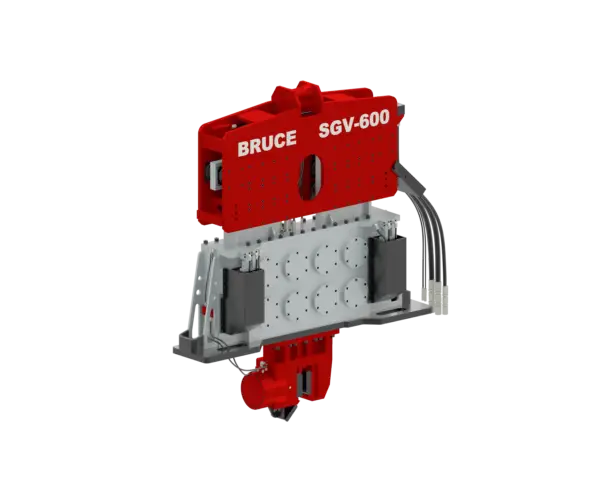

vibraotry-hammer-BRUCE SGV-600
vibro hammer-BRUCE SGV-600

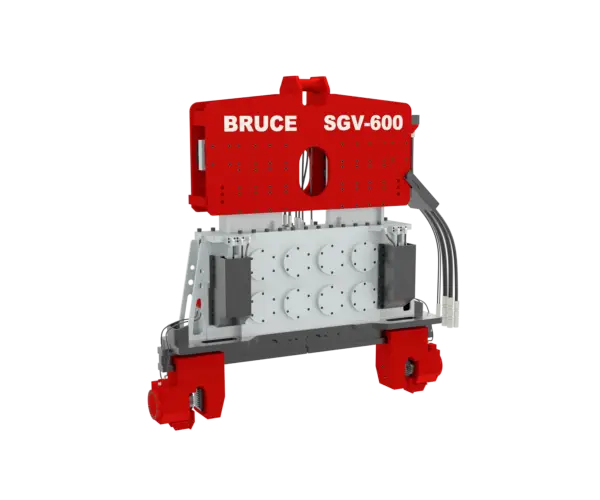

vibro hammer-BRUCE SGV-600-Double-Clamp
vibro hammer-BRUCE SGV-600

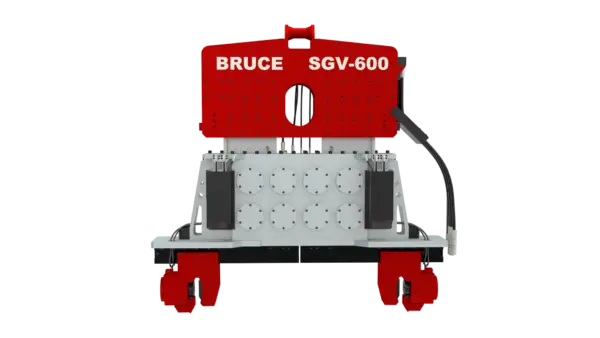

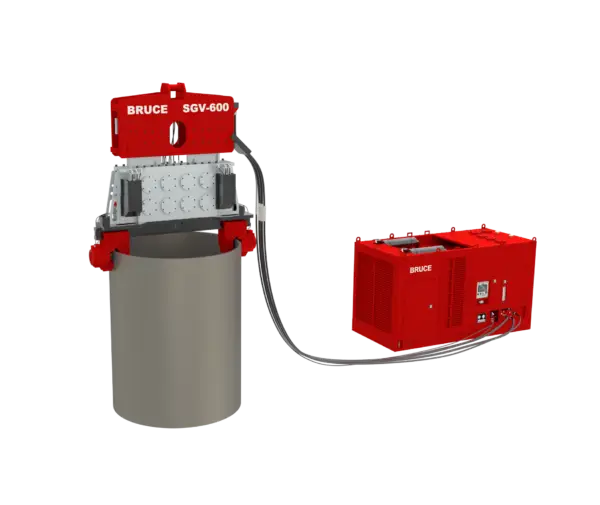

vibro hammer-bruce SGV-600-#3 3000Double-Clamp-050

BRUCE SGV-600 Vibratory Hammer (eccentric moment 79 kg.m)

Eccentric Moment Centrifugal Force Max. Frequency Amplitude incl. Universal Clamp Max. Line Pull for Extraction Max. Hydraulic Power Max. Operating Pressure Max.      Oil Flow
79 kg.m 255 tons 1,700 vmp 22 mm 110 tons 397 kW 320 bar 745 lpm
6,857 Nm 2,502 kN 1,700 vpm 0.87 inch 1,078 kN 532 HP 4,641 psi 197 gpm
vibro-hammer-spec-bruce-SGV-600
